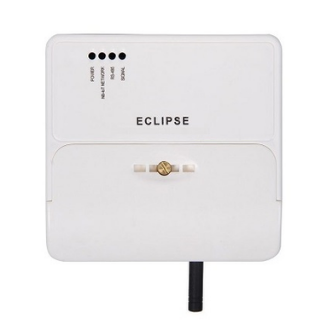

Cat M1 NB Gateway 128 M-Bus Slaves| ECL-GW-T8-CMWMB128
ECL-GW-T8-CMWMB128 is a state of the art Cat M1 NB-IoT Gateway designed mainly for use in remote electricity and water meter reading applications.
It can communicate over B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85 Cat-M1 frequency bands. Its data transmission rate is up to 588 kbps downlink and 1119 kbps uplink. It also supports LTE Cat NB2.
Eclipse Cat M1 modem supports Wireless M-Bus standard and RS485 interface.
Eclipse M-Bus Gateway is an outdoor wireless device with its rugged, non flammable, sealable enclosure.
Its software can be customized and be adapted to different reading standards, meter brands, models, data processing scenarios and data formats that can be requested by Smart Metering and Advanced Metering Infrastructure (AMI) Systems and can be easily updated over the air (OTAP) in a secure manner.
SPECIFICATIONS
- Size: 106 x 107 x 55 mm
- Weight: ~300 grams
- Sealable Terminal Cover, IP54
- Flame retardant (UL94V-0)
- DIN Rail and Wall Mounting
- -35 … +75°C operating temperature
- -40 … +85°C storing temperature
- 55…435VAC operating voltage
- 6 KV Impact Resistance
- Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
- Cat NB2:
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
- Data Transmission:
- Cat M1: Max. 588 (DL) Max. 1119 (UL)
- Cat NB2: Max. 127 (DL) Max. 158.5 (UL)
Cat NB1: Max. 32 (DL) Max. 70 (UL)
- Protocol Stacks: IPv4 IPv6 UDP CoAP LwM2M Non-IP DTLS TCP MQTT
- Point-to-point MO and MT
- PDU Mode
- Cat M1 and NB2 according to 3GPP Rel.13
- 3GPP TS 27.007 V14.3.0 (2017-03) and Quectel Enhanced AT Commands
- USIM × 1: Supports 1.8/3.0 V USIM Card
- Maximum Output Power: 23 dBm ±2 dB
- Sensitivity: -129 dBm ±1 dB
- Power Consumption (Typical) : 3 μA @ PSM 0.5 mA @ Idle Mode, DRX = 2.56 s, ECL0
- LTE Cat NB2 Connectivity:
- 250 mA @ Radio Transmission, 23 dBm (B1/B3)
- 220 mA @ Radio Transmission, 23 dBm (B8/B5/ B20)
- 280 mA @ Radio Transmission, 23 dBm (B28)
- 130 mA @ Radio Transmission, 12 dBm (B1/B3/ B8/B5/B20/B28)
- 70 mA @ Radio Transmission, 0 dBm (B1/B3/B8/ B5/B20/B28)
- 60 mA @ Radio Reception
- DFOTA: Delta Firmware Upgrade Over-The-Air
- RAI: Release Assistance Indication
- ECID: Enhanced Cell ID
- OTDOA: Observed Time Difference of Arrival
- GCF (Global)
- CE (Europe)
- Anatel (Brazil)
- KC (South Korea)
- NCC (Taiwan, China)
- JATE/TELEC (Japan)
- RCM (Australia/New Zealand)
- NBTC (Thailand)
- IMDA (Singapore)
- Others: RoHS Compliant ATEX (Europe)
- SMA Female Antenna Connectors
- ARM Microprocessor (32-bit ARM® Cortex®-M4 120Mhz 1Mbyte Flash)
- Real Time Clock (RTC)
- Built In Flash Memory (4Mbyte)
- Hardware Watchdog
- LED Status Indicators IPv4, IPv6, UDP, CoAP, LwM2M, Non-IP, DTLS, TCP protocol stacks
- Can send last-gasp message to server in case of power cut-off with help of Super Capacitors
- CE Certified
- WMB128 – Wireless M-Bus Module ( 128 Slaves)
- 433 or 868 MHZ Operation
- 1500 meters line of sight
- TX at +10 dBm: 13.4 mA
- Receiver Sensitivity –124 dBm
- Long-Range Mode, –110 dBm at 50 kbps
- Selectivity (±100 kHz): 56 dB Blocking
- Performance (±10 MHz):90 dB
- Programmable Output Power up to +15 dBm
- RS – RS485 Interface Modbus Protocol for Bulk Water Meters
- 300—115200 bps 7E1, 8N1, 8E1, 8O1 framing
- Automatic Data Direction Control
